Description
In stock now!
- 8-Port Pixel Controller
- Revision 1.0
- Wi-Fi support (2.4GHz only)
- ESP32 Based
-

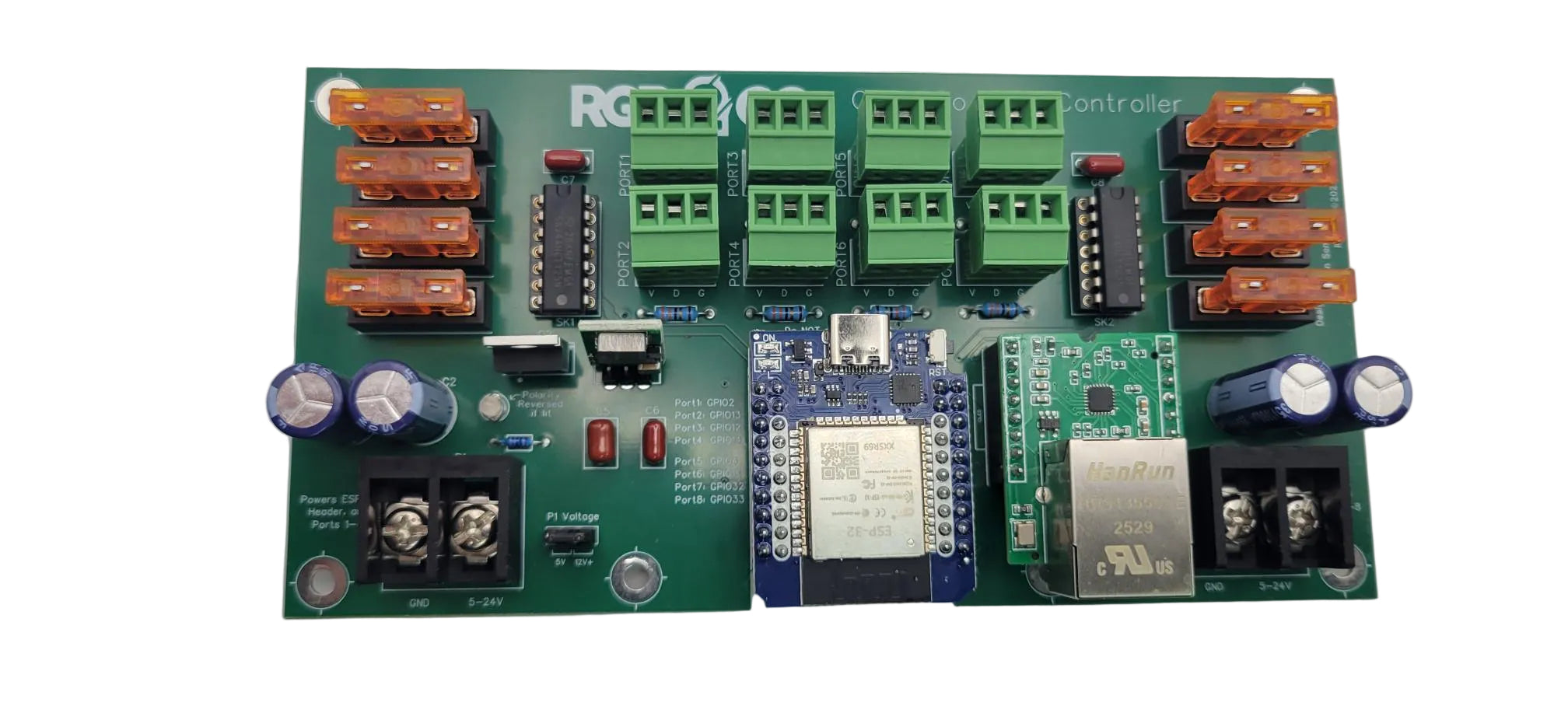

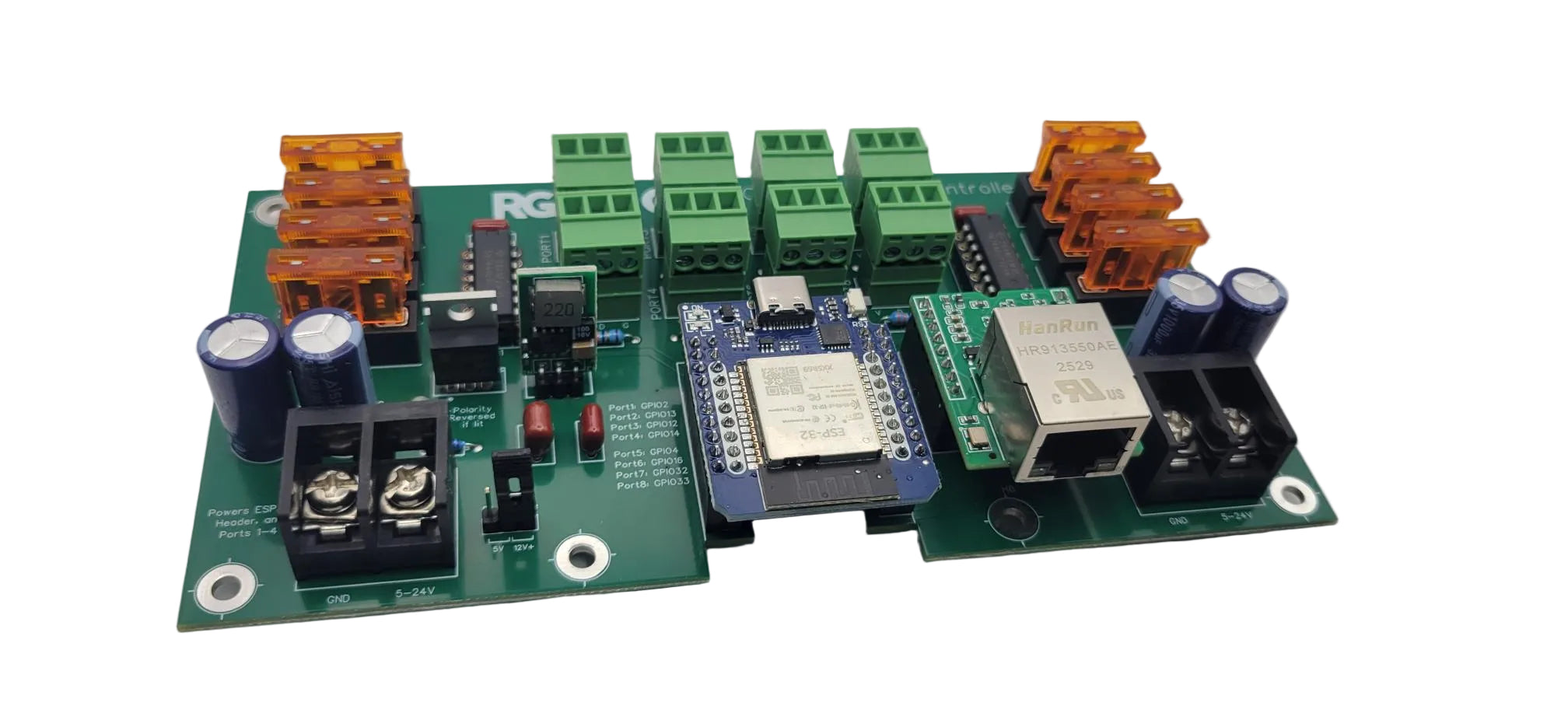

Expansion header (Ethernet, SD Card and Audio-Reactive Modules available, sold separately)
- WLED 0.15 pre-installed
(Open Source Software - EUPL v1.2 license)
Source Code: https://drive.google.com/file/d/1lK5Ju5fsY6PwVqAeN2CDKgXXXeLYecEe/view?usp=drive_link
More info:
https://github.com/Aircoookie/WLED
- XLights Compatible
- 5V Data Signal, 33 ohms
- Modular and repairable
- Supports 12v & 5v pixels and strip (3 pin only, no CLK)
- Runs WLED software, pre-installed
- Dimensions: 165mm x 83.5mm (about 6.5" x 3.25")
- 5A MAX per output. (40A Total)
(Over 200 LEDs per output should only exceeded only with proper voltage injection)
-
How many pixels can it support?
The ESP32 can calculate about 65k-85k LEDs per second (that means 1000 LEDs @~70fps, 2000 LEDs @~35fps, 4000 LEDs @~18fps)
* For excellent performance, it is recommended to use 250 pixels/output for a total of 2000 LEDs. (RECOMMENDED)
*For very good performance, it is recommended to use 400 pixels/output for a total of 3200 LEDs.
*For good performance, you can use 500 pixels/output for a total of 4000 LEDs.
*For okay performance, you can use 600 pixels/output with 8 outputs for a total of 4800 LEDs.
-
Reverse Polarity Protection*
* Make sure to note that the protection circuit only safeguards the controller and not any attached LEDs. Keep in mind that if polarity is reversed, any connected LEDs may still be damaged. After connecting the DC power cable, ALWAYS try to power on the controller without any pixels first to ensure proper polarity.

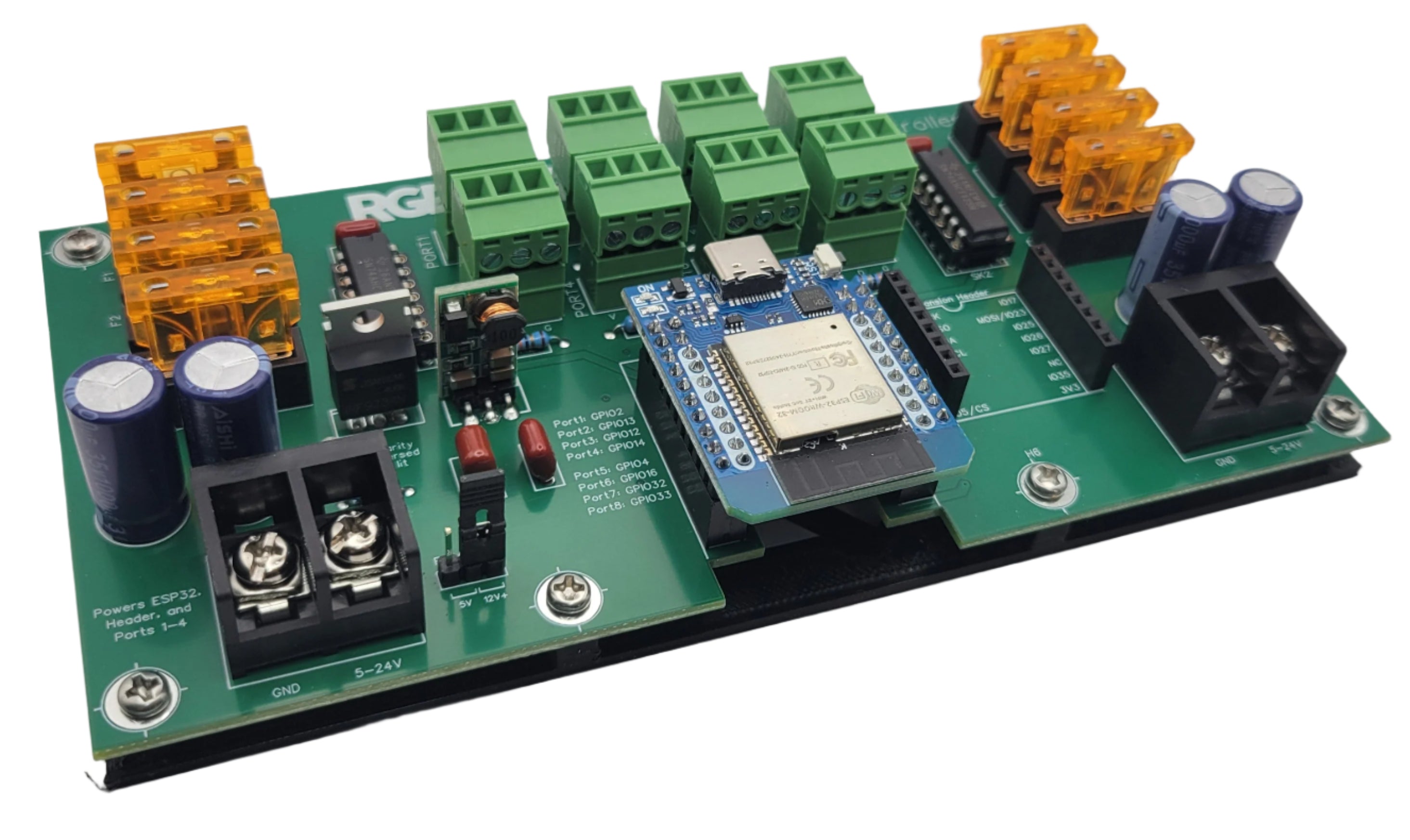

Outputs
Port1: GPIO2
Port2: GPIO13
Port3: GPIO12
Port4: GPIO14
Port5: GPIO4
Port6: GPIO16
Port7: GPIO32
Port8: GPIO33

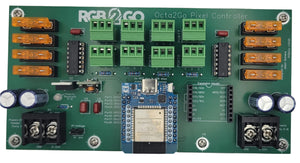

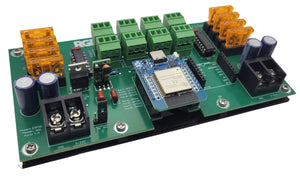

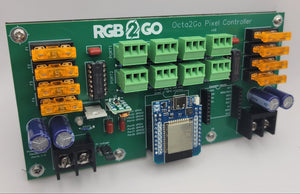

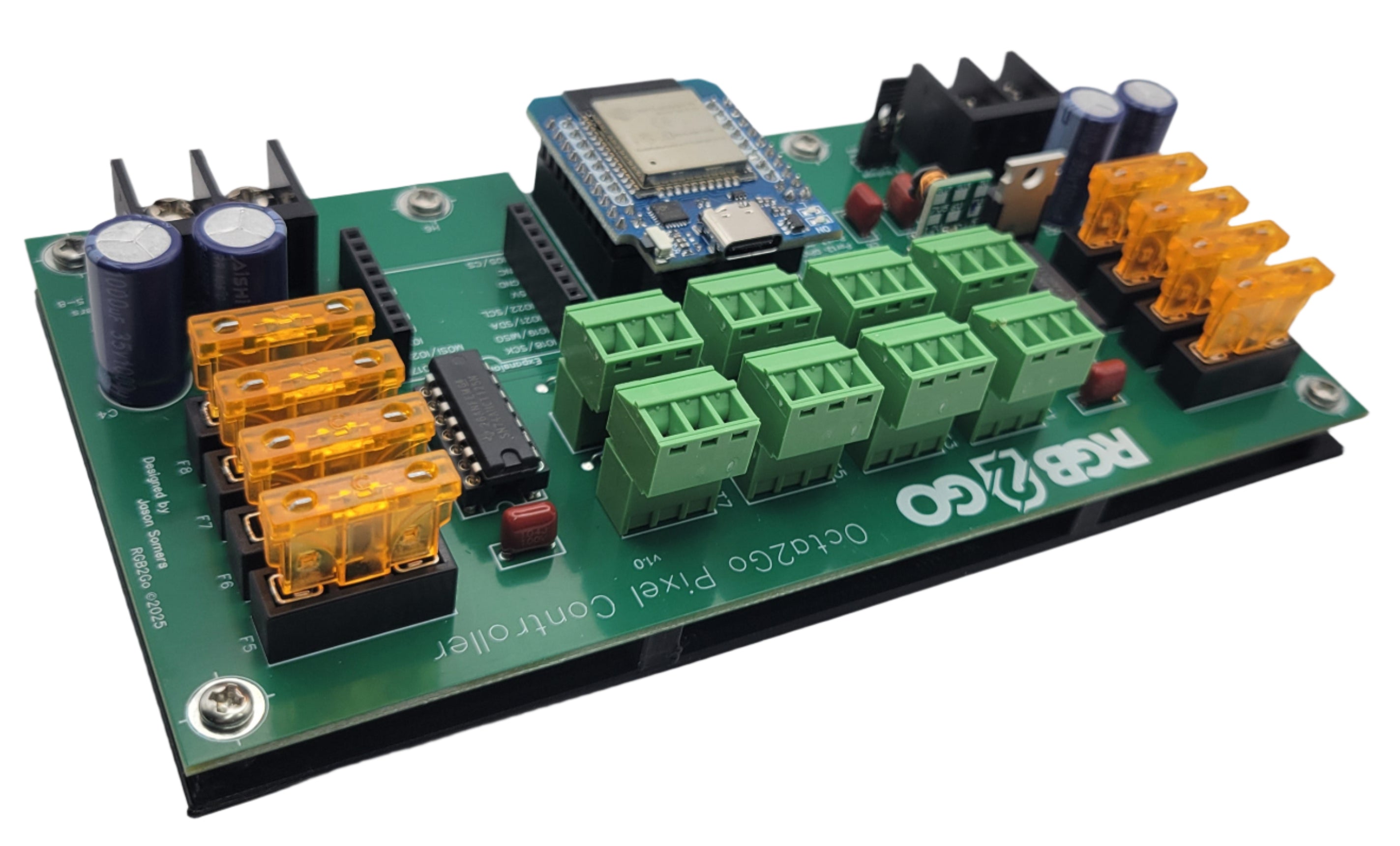

Octa2Go 8-Port Wi-Fi Pixel Controller
