ESP32 D1 Mini CH9102
ESP32 D1 Mini CH9102
Regular price
$7.99 USD
Regular price
Sale price
$7.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
*These are the controllers used on the Tetra2Go 1.X
Features
- PCB-mounted antenna
- 240MHz Dual-Core Processor
- Wi-Fi + Bluetooth 4.0 + BLE module
- 4MB (32Mbit) Flash Memory
- Onboard USB Type-C connector
- SoC: ESP32 FCC certified Wi-Fi and Bluetooth module (ESP-WROOM-32 Module)
- USB-to-Serial: Ch9102 USB to UART Bridge
- GPIO: 3×UART, 3×SPI, 2×I2S, 18×ADC input channels, 2×DAC output channels, 2×I2C, PWM/timer input/output available on every GPIO pin, OpenOCD debug interface, SDIO master/slave (50 MHz), external SPI flash (up to 16MB), and SD-card interface support
- Size: 39mm × 31mm
- Voltage Reg.: RT9013 500mA LDO
- Power Input: 3.0~5.5VDC

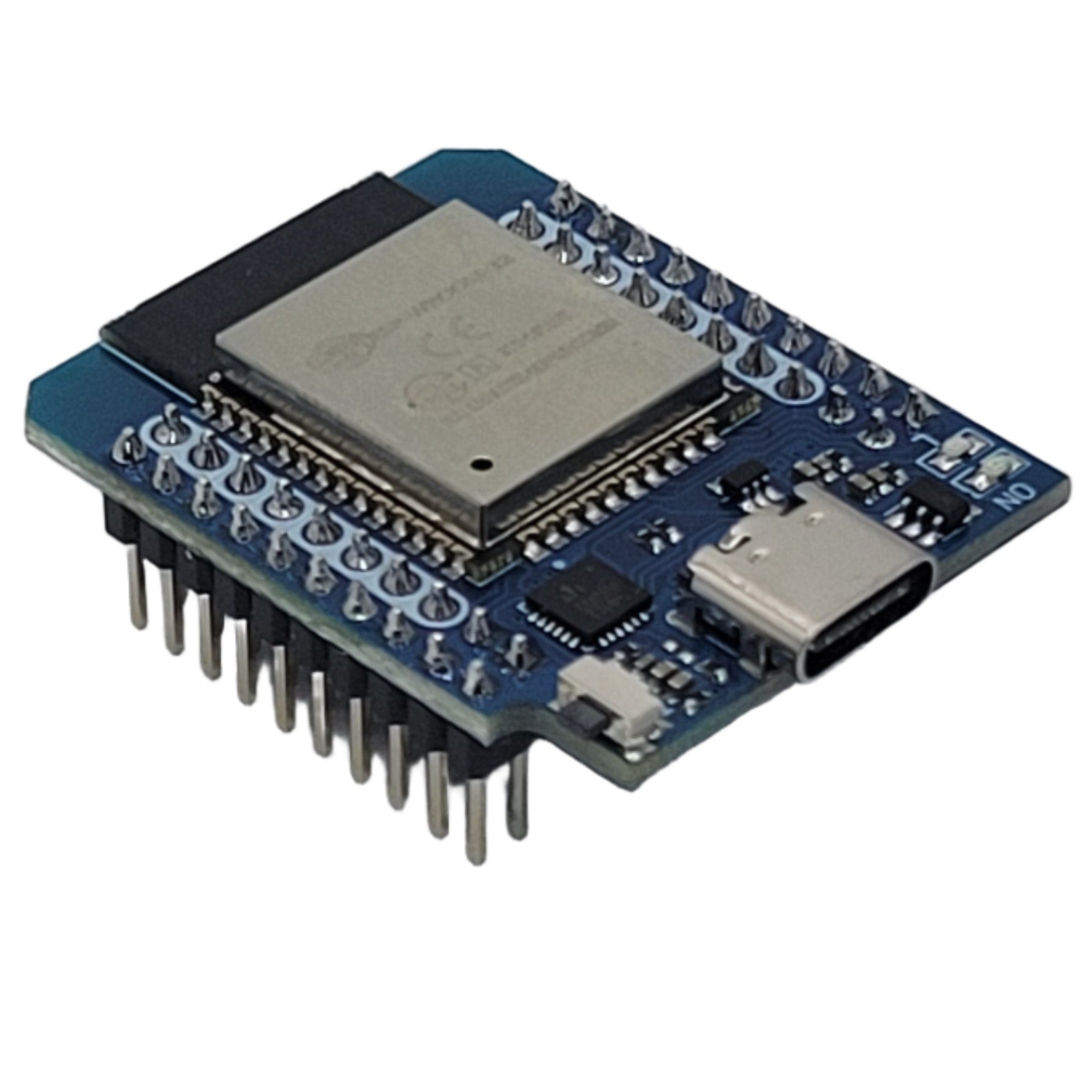

![ESP32 D1 Mini CH9102](http://rgb2go.com/cdn/shop/files/20240429_214449.jpg?v=1714443029&width=1445)

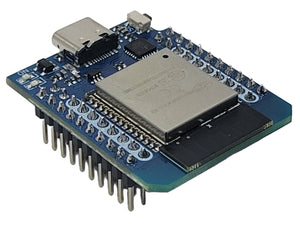

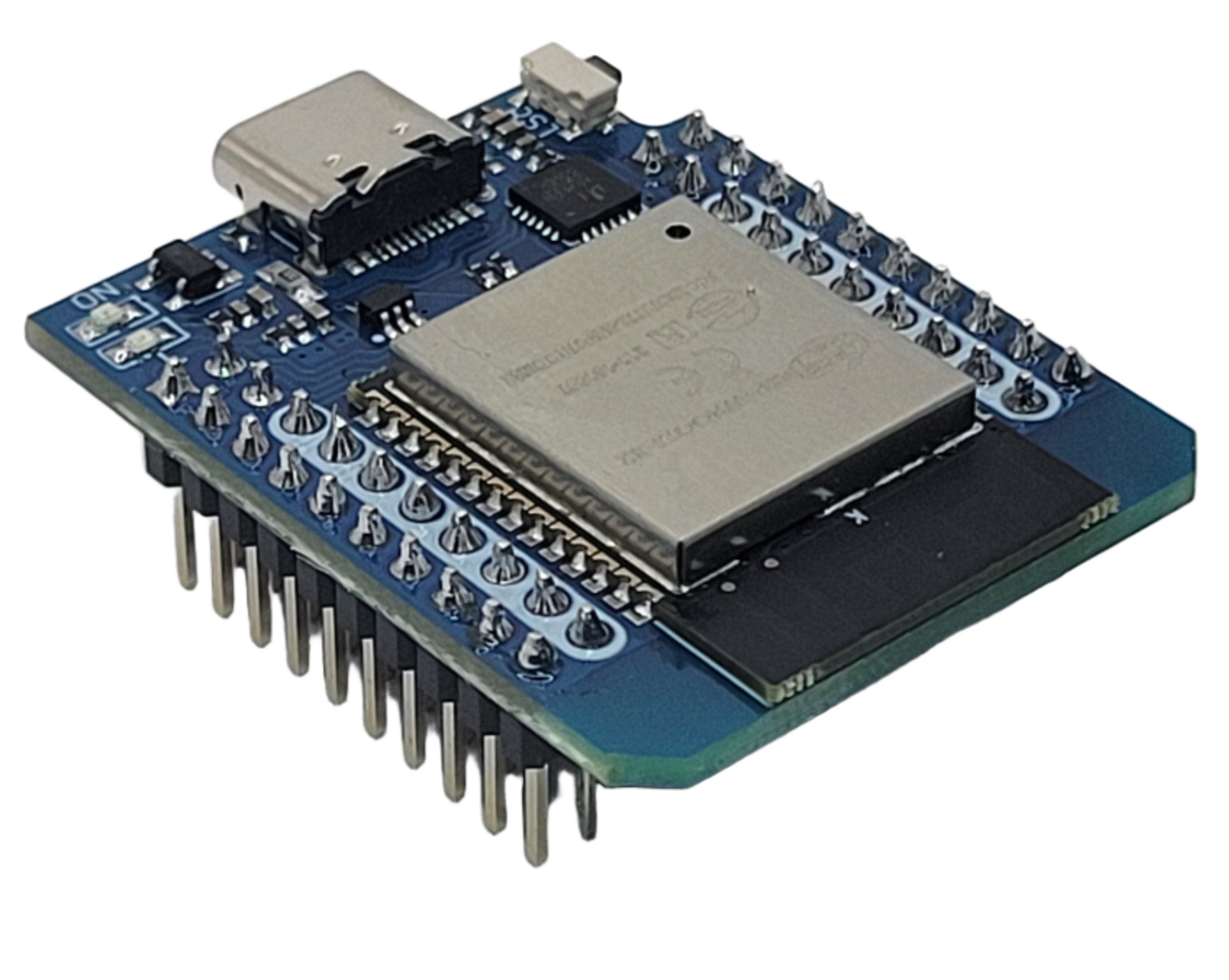

![ESP32 D1 Mini CH9102](http://rgb2go.com/cdn/shop/files/20240429_214457.jpg?v=1714443073&width=1445)

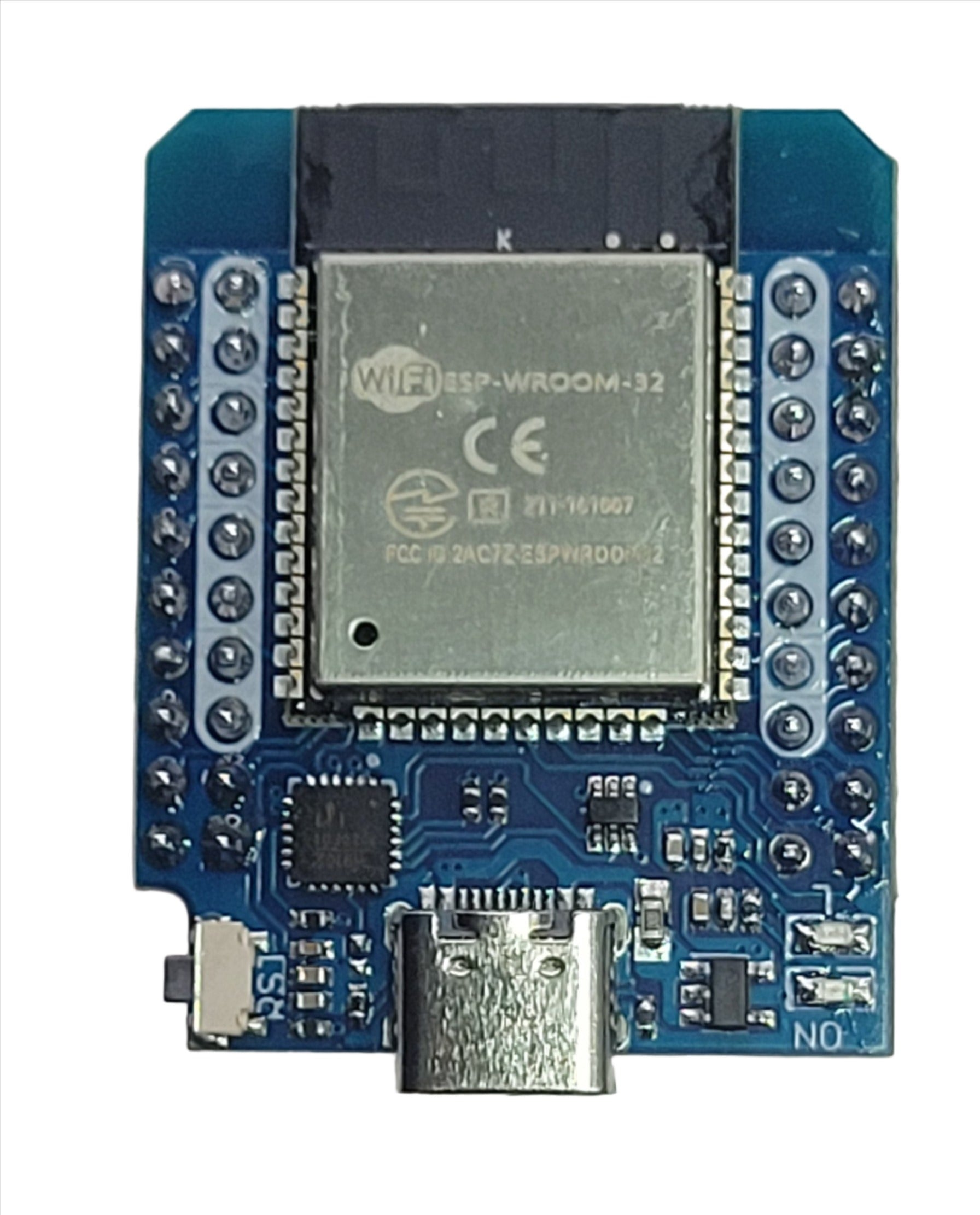

![ESP32 D1 Mini CH9102](http://rgb2go.com/cdn/shop/files/20240429_214620.jpg?v=1714443122&width=1445)

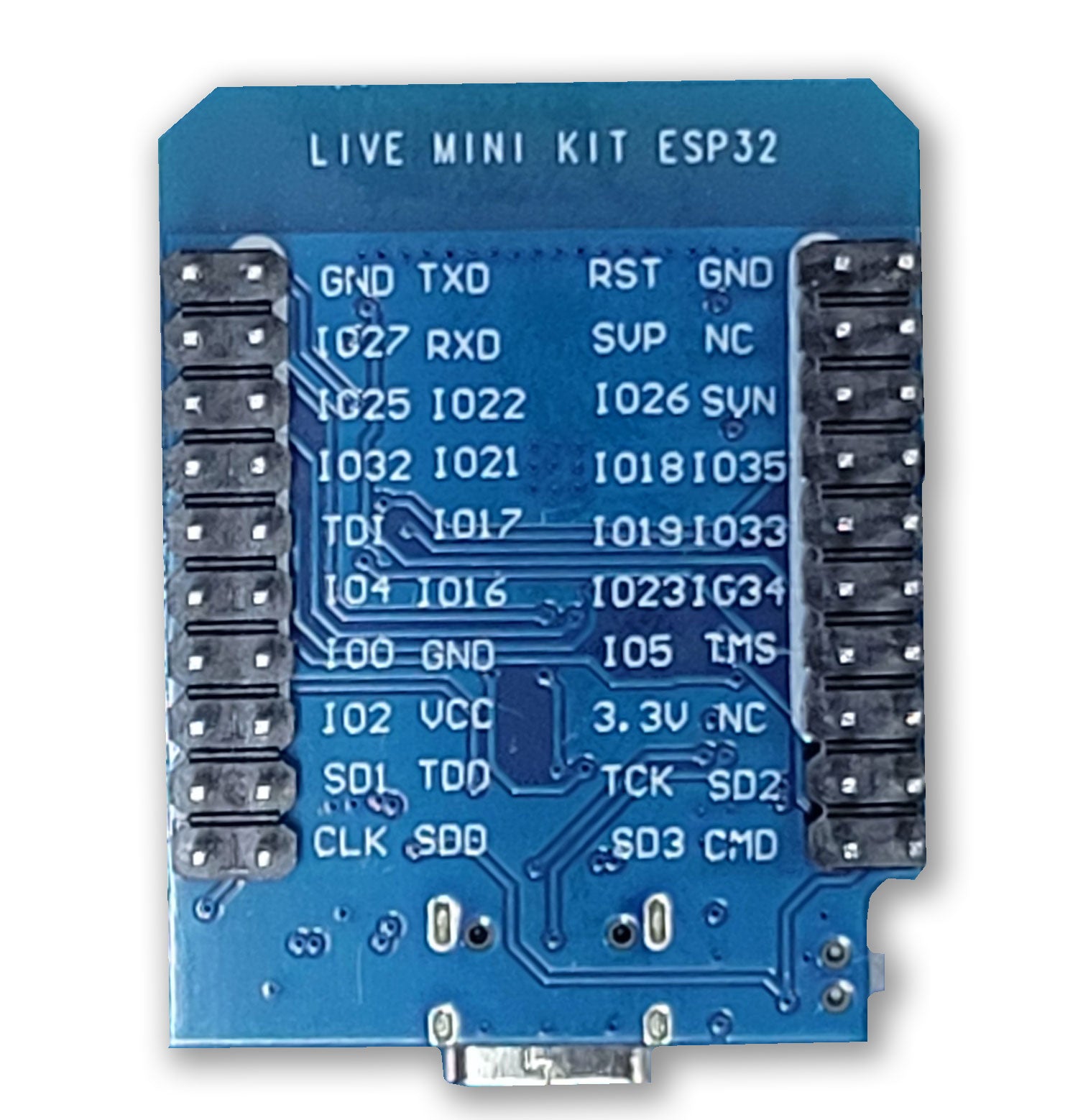

![ESP32 D1 Mini CH9102](http://rgb2go.com/cdn/shop/files/ESP32_1.jpg?v=1714442986&width=1445)

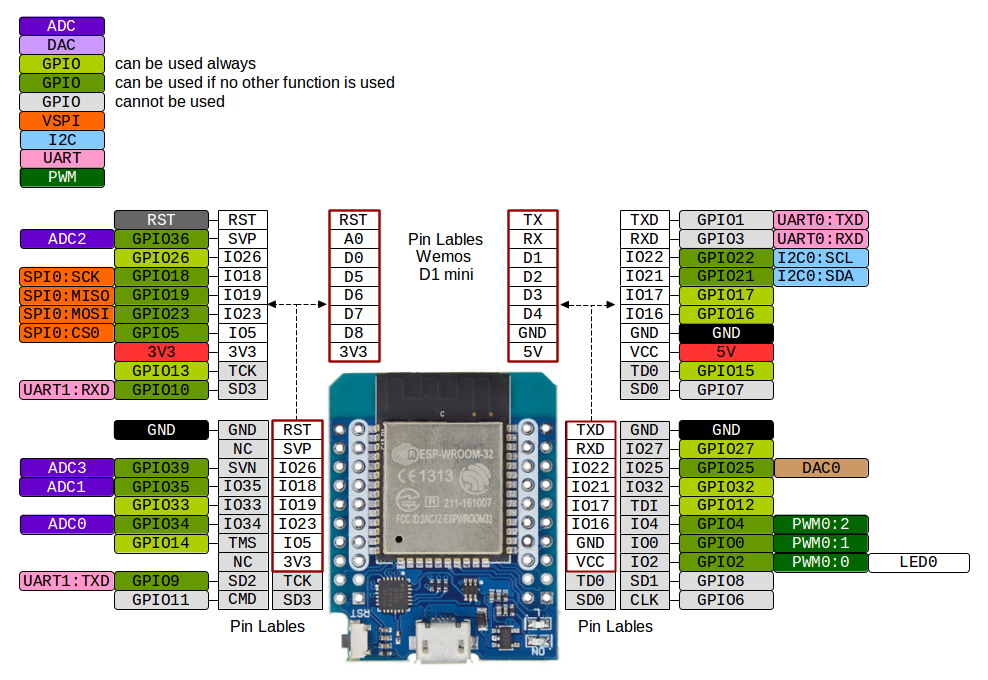

![ESP32 D1 Mini CH9102](http://rgb2go.com/cdn/shop/files/D1_mini_ESP32_pinout.png?v=1714442984&width=1445)
